DR-APO | Decoupled-Representation Advantage-Guided Policy Optimization

One policy-improvement principle. Three policy representations.
From continuous-control learning to embodied-policy post-training.

Full academic presentation · 7 min 17 sec

THE PAPER

Abstract

Policy representations in reinforcement learning have expanded beyond Gaussian policies to diffusion and flow-matching based generative policies. However, existing RL methods remain representation-specific, lacking a unified optimization interface for emerging generative policies. In particular, extending likelihood-based objectives to multi-step generative policies couples optimization to their internal generation process, where accumulated likelihood ratios can weaken the update signal. Meanwhile, generative-policy-specific methods often rely on multi-candidate generation and critic-based selection, improving overall return while providing limited improvement to the policy itself. We introduce DR-APO (Decoupled-Representation Advantage-Guided Policy Optimization), which decouples policy improvement from policy representation through advantage-guided target improvement and representation-compatible direct action fitting, providing a shared optimization principle for Gaussian, diffusion, and flow policies. Across five MuJoCo-v5 tasks, DR-APO remains competitive with SAC for Gaussian policies and achieves the best aggregate policy-only performance for both diffusion and flow-matching policies. NavDP post-training improves the Success Rate (SR) from 70.33% to 89.55% in simulation and from 25% to 65% in real-world navigation. These results demonstrate a unified policy-improvement principle across Gaussian, diffusion, and flow policies, from continuous-control learning to embodied-policy post-training.

A SHARED OPTIMIZATION INTERFACE

Method Overview

Decouple how an action is improved from how a policy represents it.

Advantage-Guided Target Improvement

Construct locally improved action targets using advantage information. Local action refinement and advantage reweighting provide complementary signals for policy improvement.

Representation-Compatible Direct Action Fitting

Fit the improved targets with a representation-compatible action readout. Gaussian policies use mean regression; diffusion and flow policies combine direct action fitting with native auxiliary training.

Gaussian · Diffusion · Flow
No likelihood-ratio actor updates or inference-time multi-candidate critic selection.

FROM SCRATCH · MUJOCO-v5

Continuous Control Experiments

Five environments. Three policy families. One shared improvement rule.

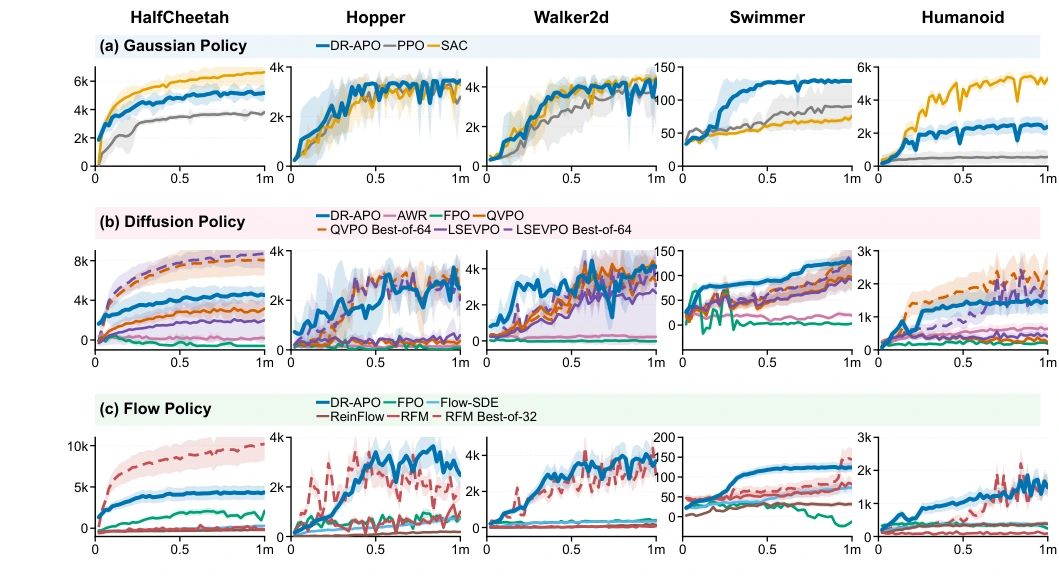

Gaussian, diffusion, and flow learning curves across HalfCheetah, Hopper, Walker2d, Swimmer, and Humanoid — Original learning curves. Lines and shaded regions denote mean and standard deviation. Click figure to enlarge ↗

Training: 1M steps · Five random seeds · Evaluation every 20k steps.
Final Return: 820k–1M steps. Normalized AUC@1M: 20k–1M steps.

Highest mean Final Return and AUC@1M across all five tasks: 10 of 10 comparisons.

Flow policy-only results · Table I
Method	HalfCheetah		Hopper		Walker2d		Swimmer		Humanoid		Avg. rank ↓
Method	Final	AUC	Final	AUC	Final	AUC	Final	AUC	Final	AUC	Final	AUC
FPO	1601.1	1311.8	736.2	619.0	390.5	314.3	-11.2	18.4	323.9	359.3	3.20	2.60
Flow-SDE	215.7	-65.0	677.9	405.2	334.3	263.0	70.1	47.5	375.3	334.8	3.00	3.20
ReinFlow	-211.8	-295.6	185.4	97.5	135.0	52.9	31.1	24.9	367.3	316.4	4.20	4.40
RFM	46.0	-117.8	806.1	584.5	48.4	40.5	72.4	55.2	104.1	98.3	3.60	3.80
DR-APO	4299.2	3824.2	3016.4	2212.7	3650.0	2624.2	124.2	98.6	1535.4	1037.6	1.00	1.00

Highest mean Final Return on four tasks and AUC@1M on all five tasks: 9 of 10 comparisons.

Diffusion policy-only results · Table I
Method	HalfCheetah		Hopper		Walker2d		Swimmer		Humanoid		Avg. rank ↓
Method	Final	AUC	Final	AUC	Final	AUC	Final	AUC	Final	AUC	Final	AUC
AWR	135.5	205.7	144.9	143.9	220.2	228.1	19.2	17.3	640.6	509.2	3.60	3.60
FPO	-587.5	-344.9	40.7	119.4	-2.0	-0.2	2.8	11.1	201.9	197.1	5.00	5.00
QVPO	2981.3	2350.8	324.4	291.4	3913.3	2519.4	88.9	54.7	292.1	340.5	2.40	2.80
LSEVPO	1924.6	1462.1	497.8	396.9	2521.9	1627.0	83.0	54.9	439.4	395.8	2.80	2.60
DR-APO	4572.7	3840.5	2631.5	1955.6	3853.6	2902.6	124.9	93.7	1462.0	1185.0	1.20	1.00

Competitive with SAC in Final Return, with the best average AUC@1M rank.

Gaussian policy-only results · Table I
Method	HalfCheetah		Hopper		Walker2d		Swimmer		Humanoid		Avg. rank ↓
Method	Final	AUC	Final	AUC	Final	AUC	Final	AUC	Final	AUC	Final	AUC
PPO	3250.1	3057.5	3022.9	2484.4	3652.1	2547.9	68.4	53.4	541.0	493.2	3.00	2.80
SAC	6538.1	5621.8	3158.3	2420.7	4343.8	3181.8	69.8	58.0	5137.5	3951.5	1.40	1.80
DR-APO	5154.5	4574.1	3288.9	2692.3	4243.2	3202.6	128.7	106.5	2363.9	1945.0	1.60	1.40

Values transcribed directly from Table I. Rankings are within each policy family. Best-of-64/32 critic-selected variants appear in the original curves but are excluded from the policy-only table and rankings.

PRETRAINED NAVDP → DR-APO

Embodied Navigation Post-Training

Policy improvement in simulation and on a DEEP Robotics M20 quadruped.

SIMULATION · SUCCESS RATE

70.33% → 89.55%+19.22 percentage points · InternScenes

REAL WORLD · SUCCESS RATE

25% → 65%+40 percentage points · 20 scenarios

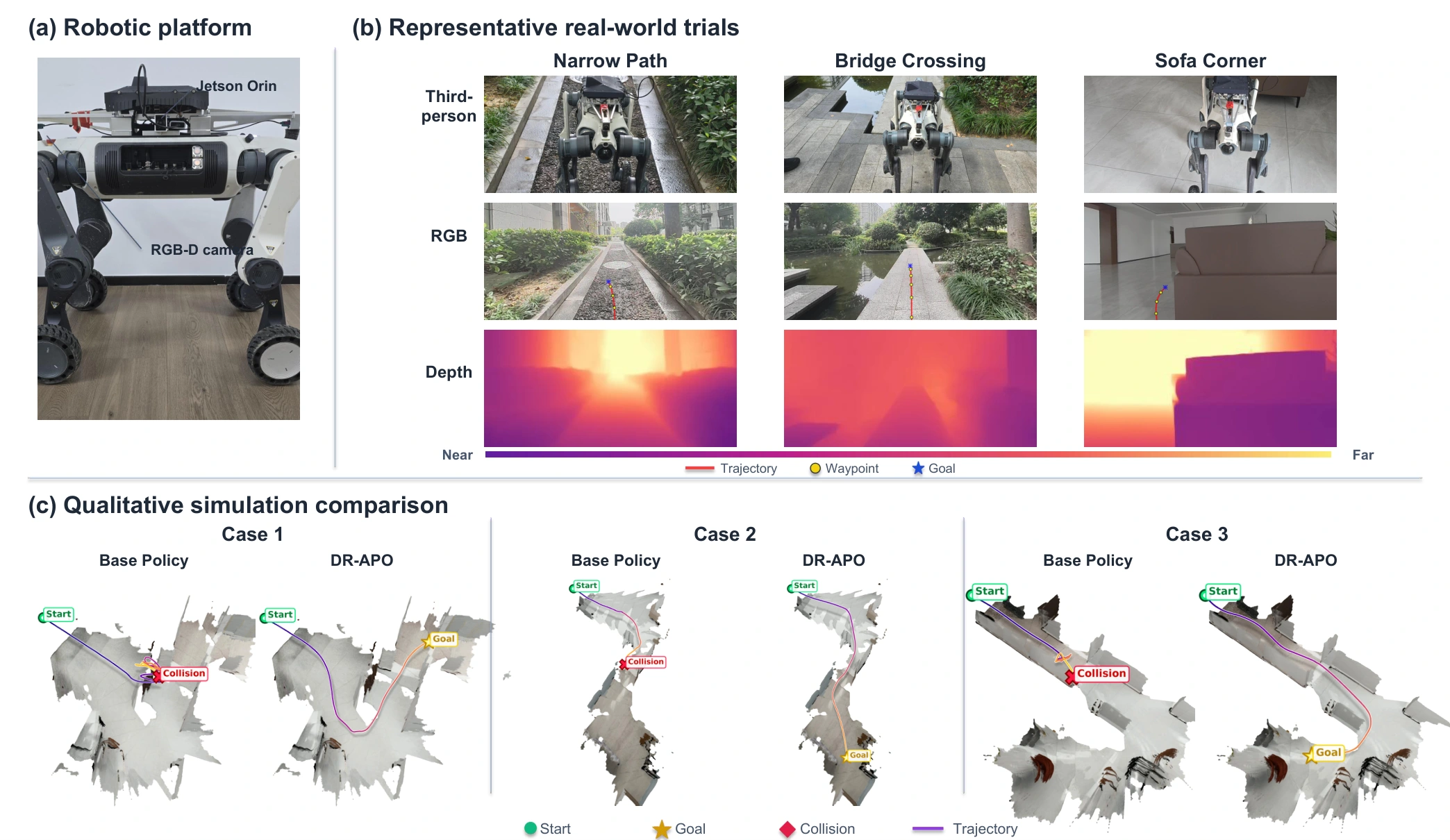

M20 robot, representative real-world trials, and simulation comparisons of the base policy and DR-APO — Robotic platform, representative real-world trials, and qualitative simulation comparisons from the paper. Click figure to enlarge ↗

View simulation evaluation results

InternScenes · Wheeled-robot navigation · Table IV
Method	Overall		Commercial		Home
Method	SR	SPL	SR	SPL	SR	SPL
iPlanner	45.28	43.54	51.75	50.02	38.80	37.05
ViPlanner	45.08	44.00	55.40	53.94	34.75	34.05
NavDP	70.33	66.85	72.55	69.74	68.10	63.96
NavOL	67.00	63.00	75.20	71.10	58.80	54.90
SIDP	77.43	69.32	82.15	74.16	72.70	64.48
NavDP-RL	—	—	—	—	68.70	62.80
X-NavDP	88.63	77.67	88.55	78.96	88.70	76.37
DR-APO	89.55	74.55	89.30	76.72	89.80	72.38

SR: Success Rate. SPL: Success weighted by Path Length. Values are percentages; — denotes an unreported result. Both simulation training and evaluation use a wheeled robot with an unchanged execution controller.

Success and path efficiency are distinct: DR-APO achieves 89.55% SR and 74.55% SPL; X-NavDP achieves 88.63% SR and 77.67% SPL.

Before & after training

Simulation Before Training

Pretrained NavDP

Simulation After Training

DR-APO post-training

Real-World Before Training

Pretrained NavDP

Real-World After Training

DR-APO post-training

Pretrained NavDP and DR-APO post-training in simulation and real-world navigation. Videos retain their original playback speed and can be played individually.

CITE THIS WORK

BibTeX

Preprint citation. Publication year and identifiers will be added when confirmed.

@unpublished{zhang_drapo,
  title  = {{DR-APO}: Decoupled-Representation Advantage-Guided Policy Optimization},
  author = {Zhang, Runhua and Niu, Yingjie and Li, Chao},
  note   = {Preprint}
}
